手机打开开发者模式,并开启usb调试

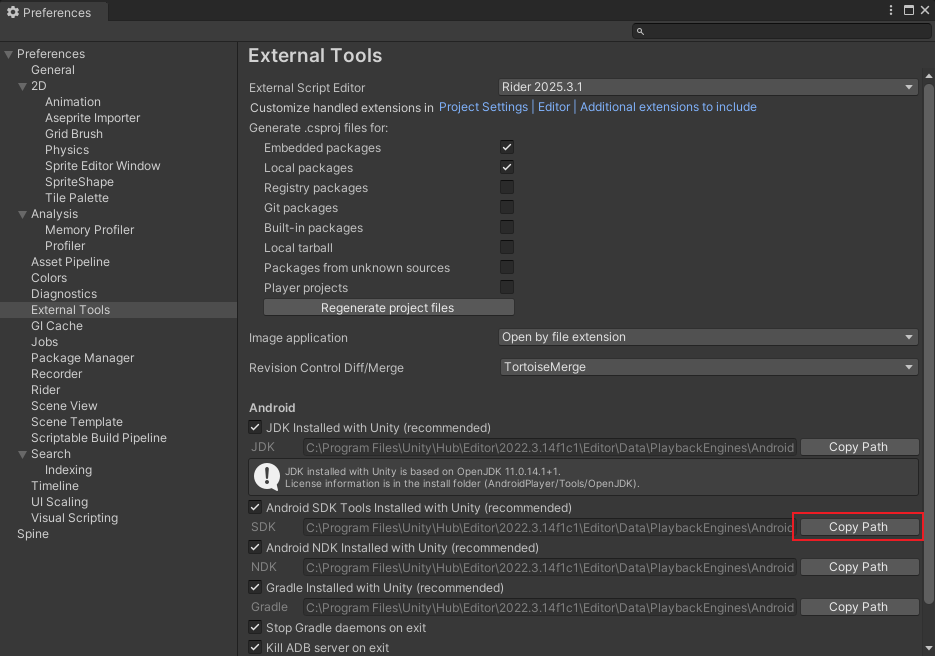

在unity中打开如下窗口,在文件管理器中打开以下路径

打开路径下的platform-tools文件夹,在cmd中进入该路径

在cmd中输入adb logcat -s Unity随后即可在cmd中实时看到log日志,这样即使程序闪退也能看到日志了

如果觉得窗口不方便查看,或者中文是乱码,可以使用adb logcat -s Unity -d > C:\Work\Project\UnityADBLog.txt将日志输出到本地文件中

引用

https://developer.aliyun.com/article/666214

扩展

在打包安卓包体时,如果出现UnityEngine.AndroidJavaException: java.lang.ClassNotFoundException,如下

1
2
3
4
01-06 10:14:03.277 9615 9656 E Unity : [TapSDK] (Main) Failed to create instance of TapSDK.Core.Mobile.TapCoreMobile: System.Reflection.TargetInvocationException: Exception has been thrown by the target of an invocation. ---> System.TypeInitializationException: The type initializer for 'TapSDK.Core.BridgeAndroid' threw an exception. ---> UnityEngine.AndroidJavaException: java.lang.ClassNotFoundException: com.taptap.sdk.kit.internal.enginebridge.EngineBridge
01-06 10:14:03.277 9615 9656 E Unity : at UnityEngine.AndroidJNISafe.CheckException () [0x0008d] in /home/bokken/sharedspace/ra_2022.3/Modules/AndroidJNI/AndroidJNISafe.cs:24
01-06 10:14:03.277 9615 9656 E Unity : at UnityEngine.AndroidJNISafe.FindClass (System.String name) [0x0000c] in /home/bokken/sharedspace/ra_2022.3/Modules/AndroidJNI/AndroidJNISafe.cs:107
01-06 10:14:03.277 9615 9656 E Unity : at UnityEngine.AndroidJavaClass._AndroidJavaClass (System.String cl

可以在unity中右键Project窗口,使用以下两个方法清楚缓存并重新解析

  • Assets - External Dependency Manager - Android Resolver - Delete Resolved Libraries
  • Assets - External Dependency Manager - Android Resolver - Force Resolve

奇坑

在排除一个问题时发现的一个unity规则

此问题:无法在scene中移动A物体的子物体B,甚至连子物体的子物体C都无法移动,

​ 一开始以为是有update在改变B的Position,但是转念一想,就连物体C都无法移动,视乎有点不太合理,难道有个脚本在update中同时控制了B的坐标和C的坐标吗?

​ 但目前为止还没有其他的思路,只能先排查一下update这种情况。最后果然不出所料,并没有找到相应的代码,我甚至怀疑是不是Editor在捣鬼。

​ 但最后想通过改配置来排查问题时,偶然发现物体A的缩放居然为0,最后将其改为1之后就可以缩放了。

总结:物体的缩放为0时,会使其子物体都聚拢在父物体的原点,并且无法移动这些子物体的相对位置

TMP+Fgui坑

表现

首次打开UI时出现一帧GPU耗时超高的帧,紧接着下一帧是一帧CPU耗时超高的帧,里面具体的是Gfx,就是在等待GPU渲染完成。具体到编辑器上就是整个游戏直接卡住一会,再出现UI,到手机上更加明显。

原因

img img

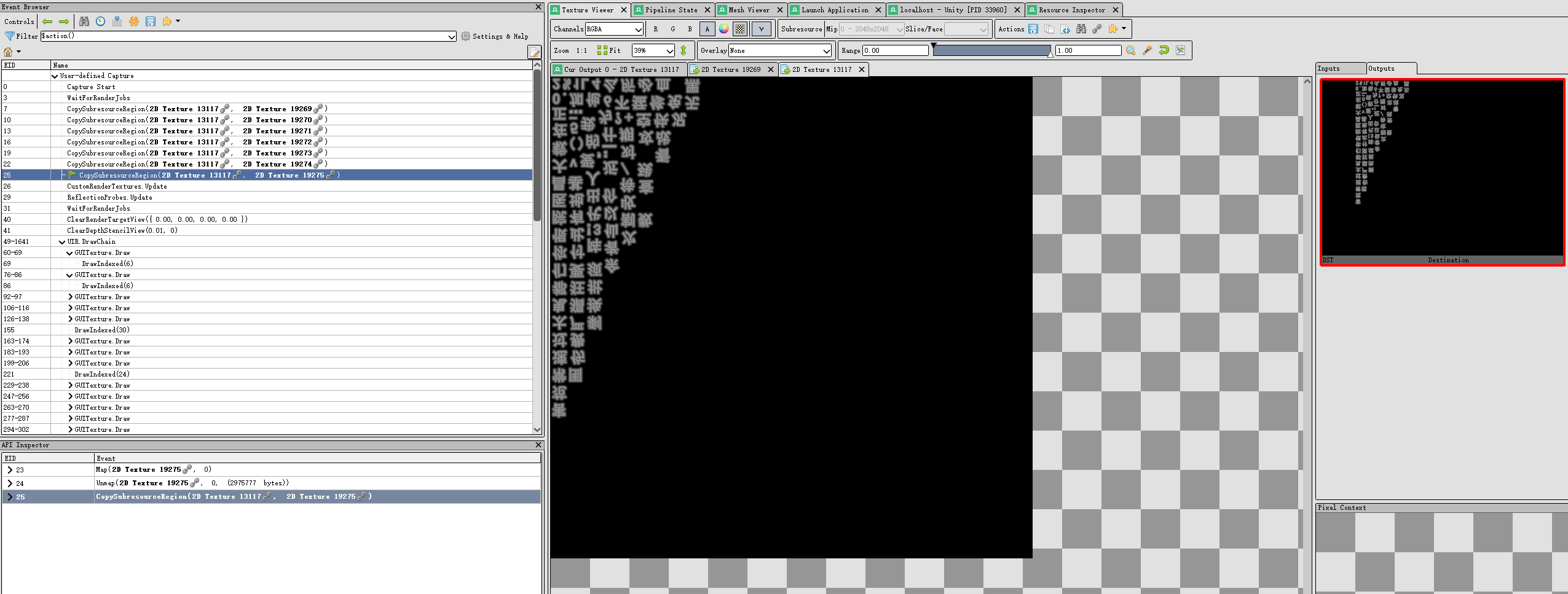

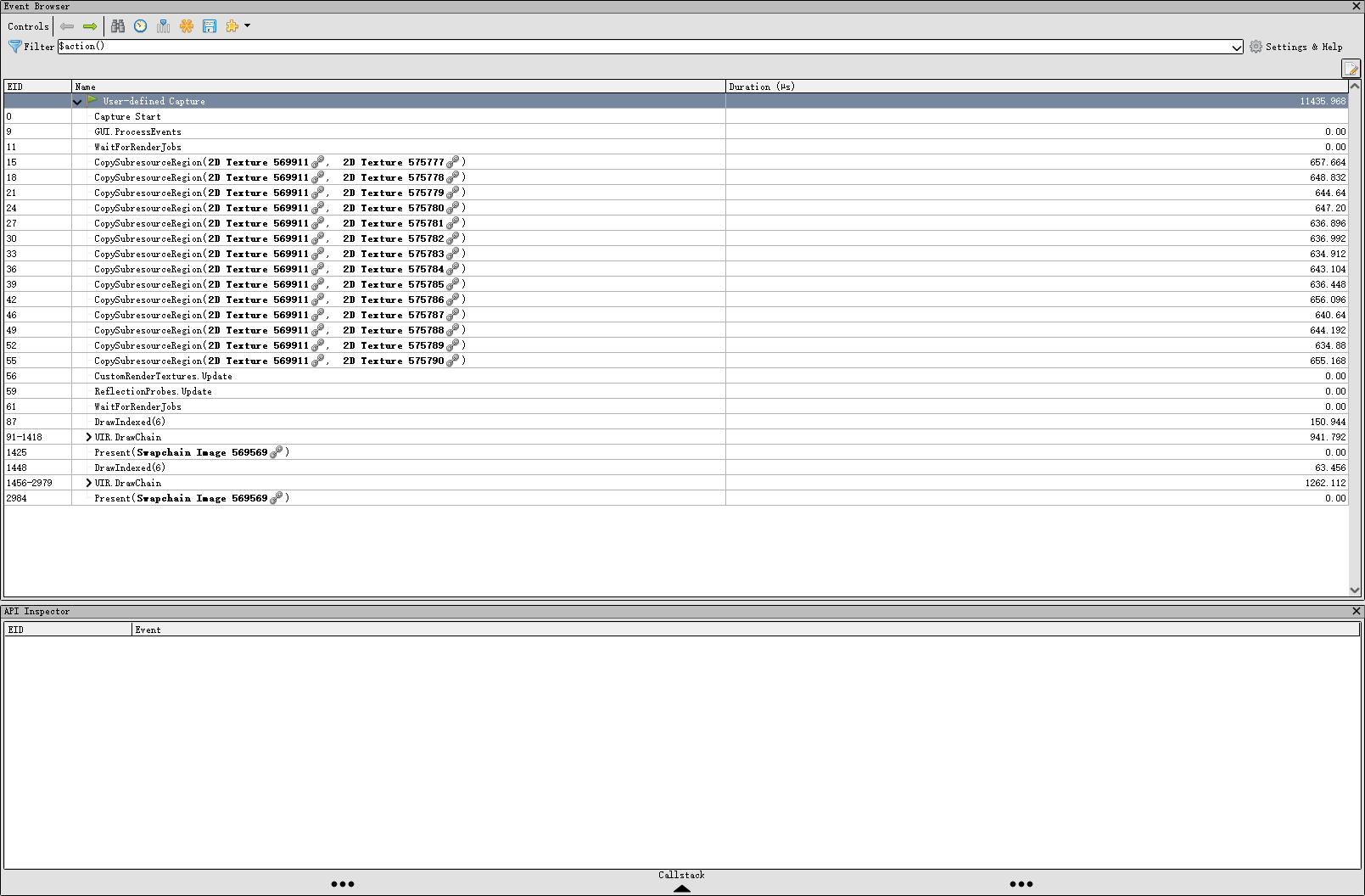

这一帧GPU里有好几次TMP图集的复制操作,一次复制一个2048*2048的图集,重复十几次,导致GPU飙得很高,然后就都是同一张一模一样的图集复制好几份,不知道是要干嘛

解决

把TMP的FontAsset的设置改为1024*1024的,就直接好了,这时候TMP图集会自动分页,就好了?不知道是个什么原理

点击事件坑

部分手机型号在使用fgui时可能会丢失点击事件

原贴1

原贴2

解决方案:使用使用unity原生的Input System

官方文档:直接增加FAIRYGUI_INPUT_SYSTEM的宏即可

UI加载坑

在使用AddPackage之后,需要使用LoadAllAssets将所有的资源都加载一遍,否则在第一次打开ui时依然会卡顿一下

1
2
3
4
5
6
7
8
9
10
11
12
13
private void AddPackageAsync(byte[] data, string key)
{
UIPackage.LoadResourceAsync LoadPackageInternalAsync = async (string name, string extension, System.Type type, PackageItem item) =>
{
name = name.Replace("_fui", "");
//异步加载包关联对象
var a = await ResourceManager.instance.LoadAsset<UnityEngine.Object>(name);
//设置资源
item.owner.SetItemAsset(item, a, DestroyMethod.Unload);
};
var _package = UIPackage.AddPackage(data, key, LoadPackageInternalAsync);
_package?.LoadAllAssets();
}

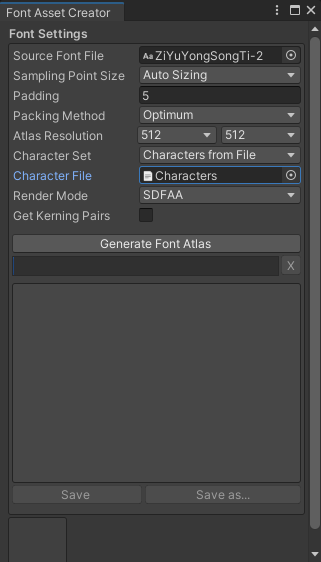

创建字体

Characters.txt内容如下,其中里面可以有重复的文字,TMP在生成的时候也自会生成一份

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789 `~!@#$%^&*()_+-×÷=,./;'[]\<>?:"{}|· !¥…()—,。、;‘’【】《》?:“”〔〕丨丶丿乛□‰≤≥℃ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789`~@#$%^&*_+-=./'[]\<>"{}
获得角色
坚持时间
造成伤害
历史最高
返回
重新挑战
斗失败
攻击

暴击
英雄


增加
数量

描边

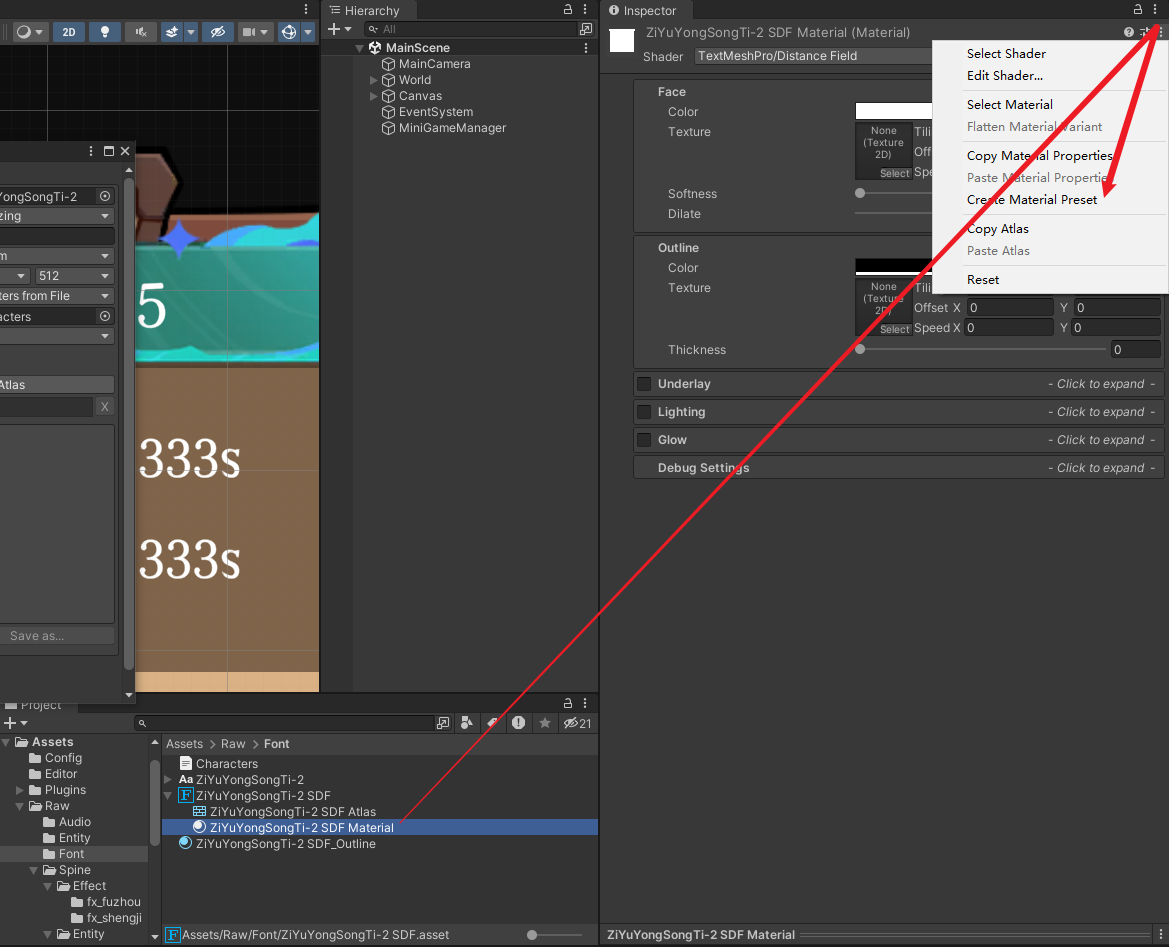

如果不同的字需要不同的描边效果,可以创建材质球,更改材质球的设置

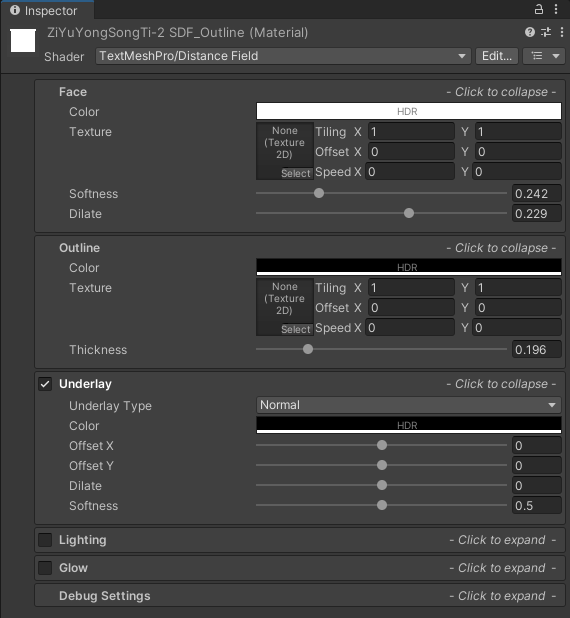

下面提供一个效果还不错的描边设置

错误解决

1
The character used for Underline is not available in font asset [ZiYuYongSongTi-2 SDF].

当包如下警告时,说明字体里没有_下划线这个字符集,需要在创建字体的时候在Characters.txt中添加下划线。

如果已经添加了,或者使用的是动态的字体,则说明原本的ttf字体本身就没有_字符集

处理方法:

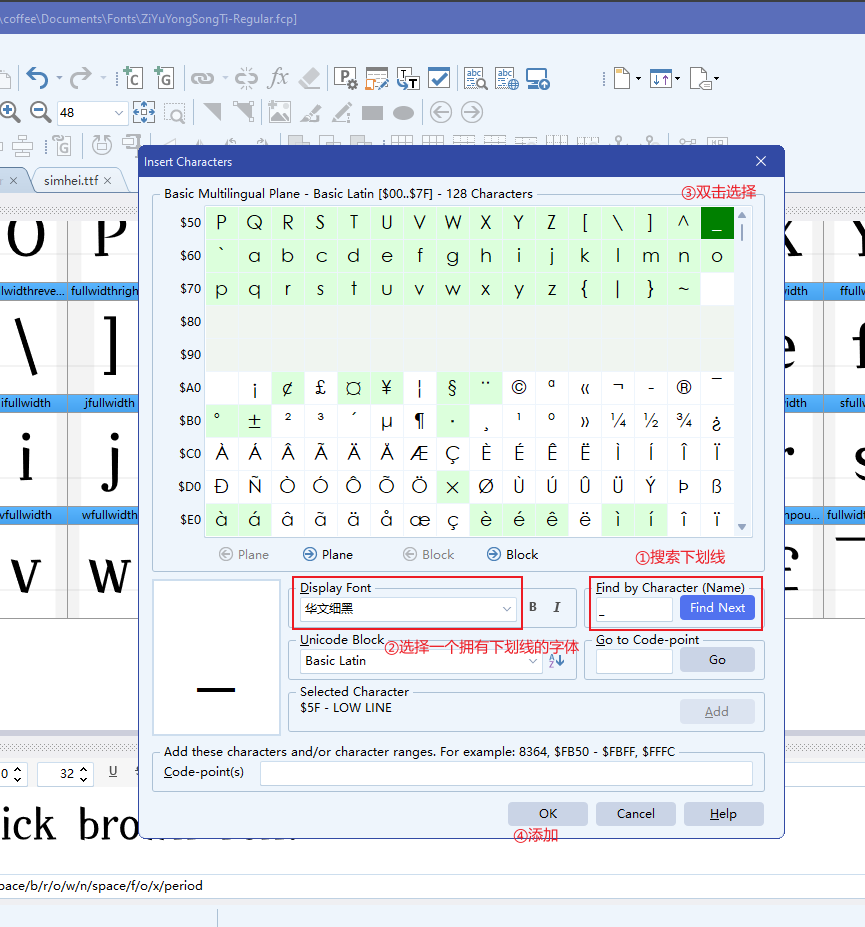

下载FontCreator软件

File->Open->打开字体

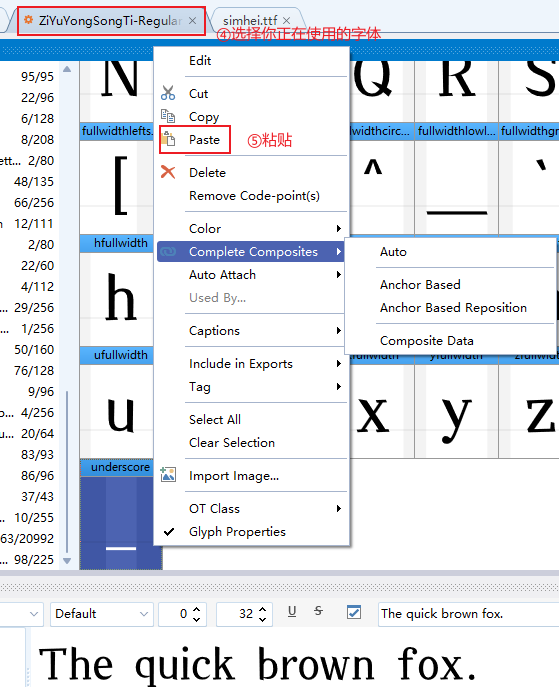

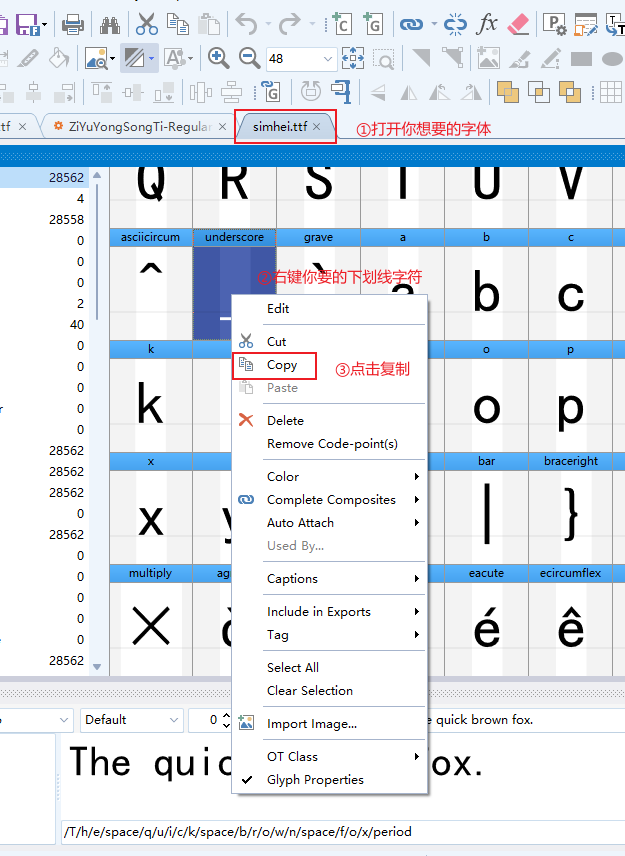

如果你不知道哪些字体中有下划线,或者你有心仪的字体的下划线,可以在随便添加一个字体后,从你指定的字体中复制一个下划线

原贴

原贴

流程

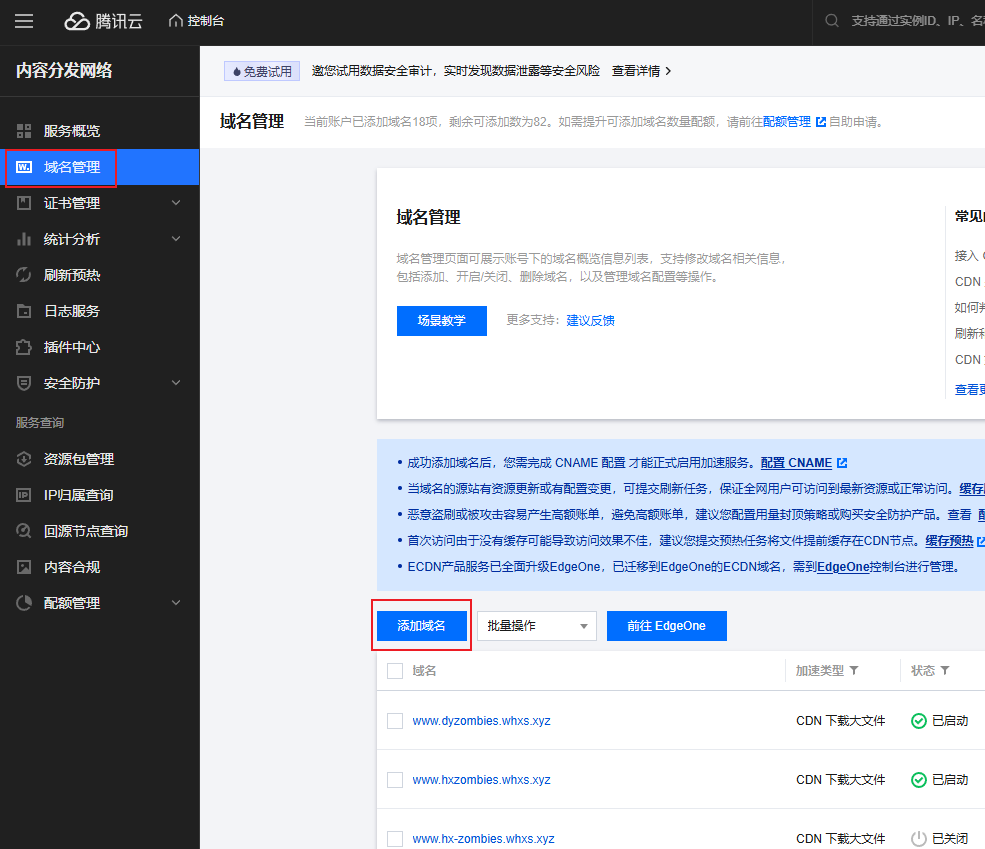

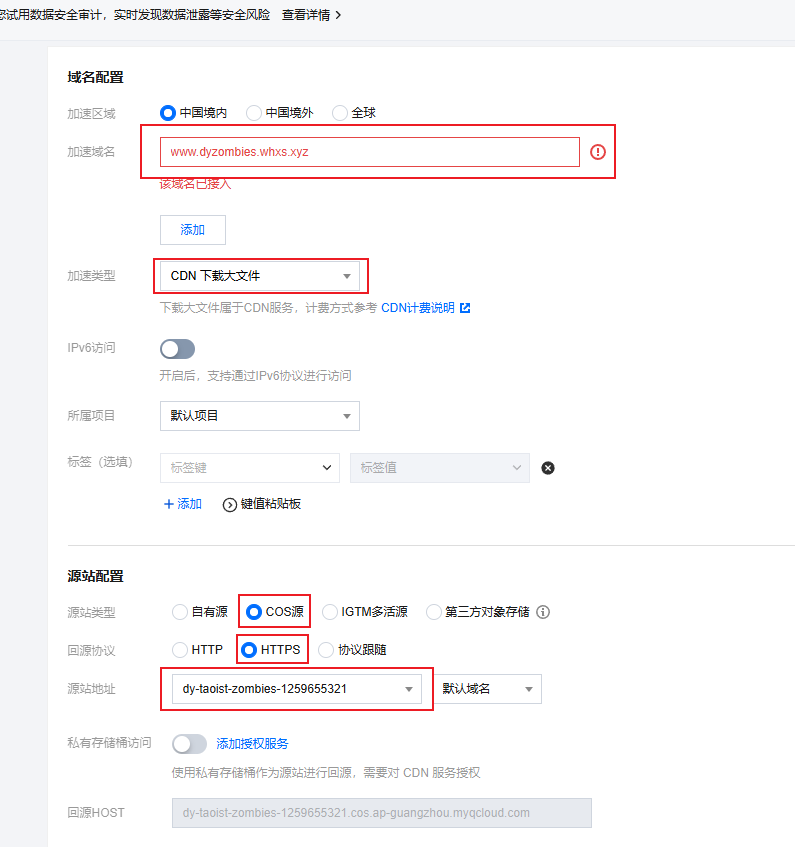

  1. 添加域名

    img img

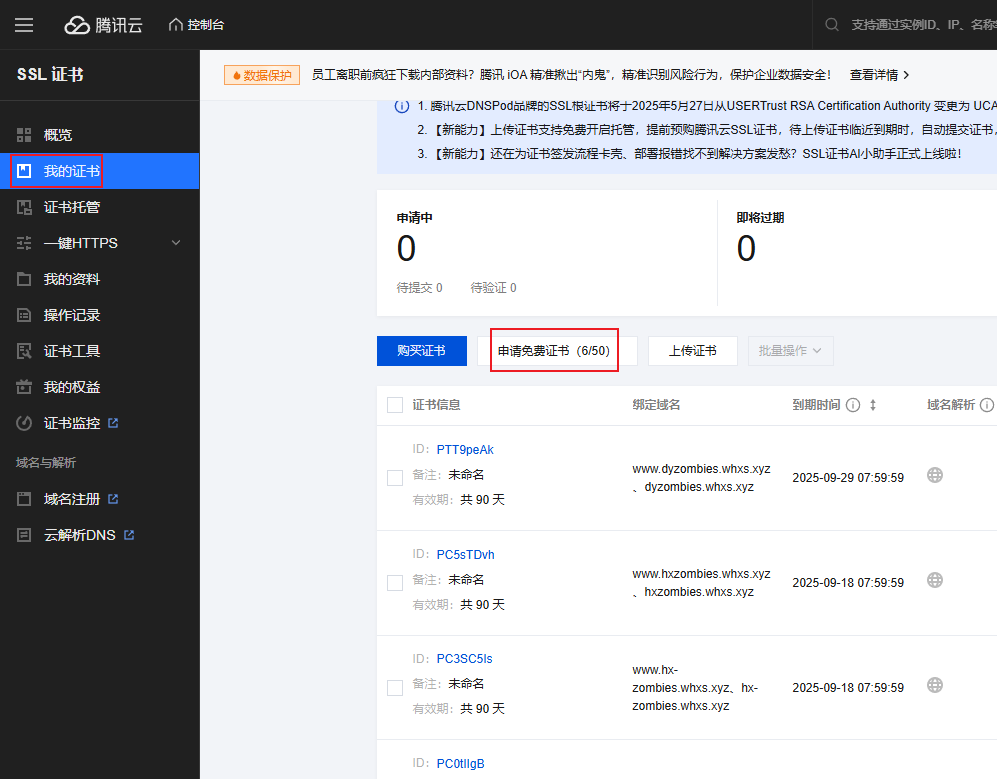

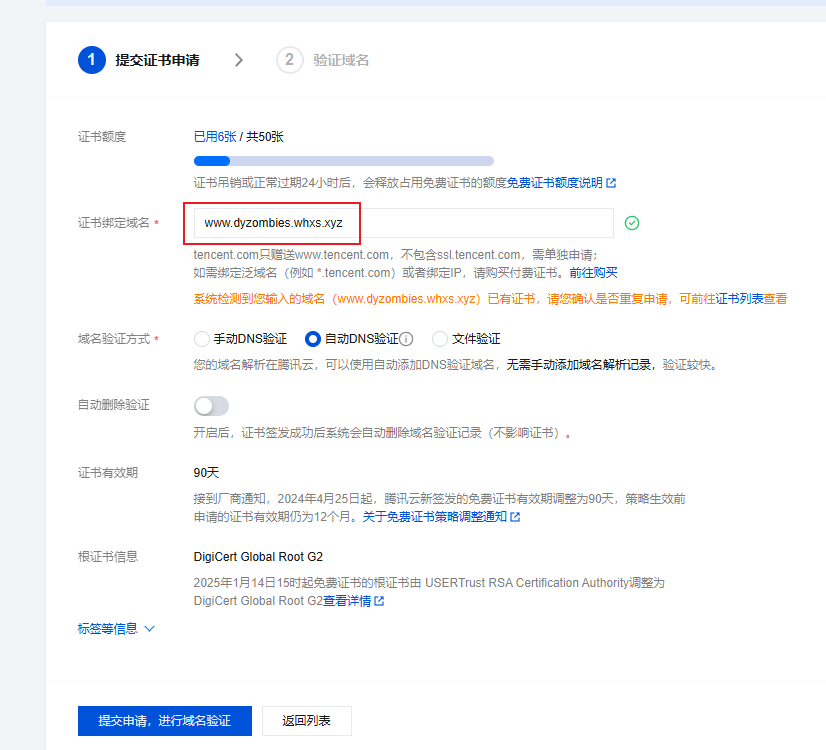

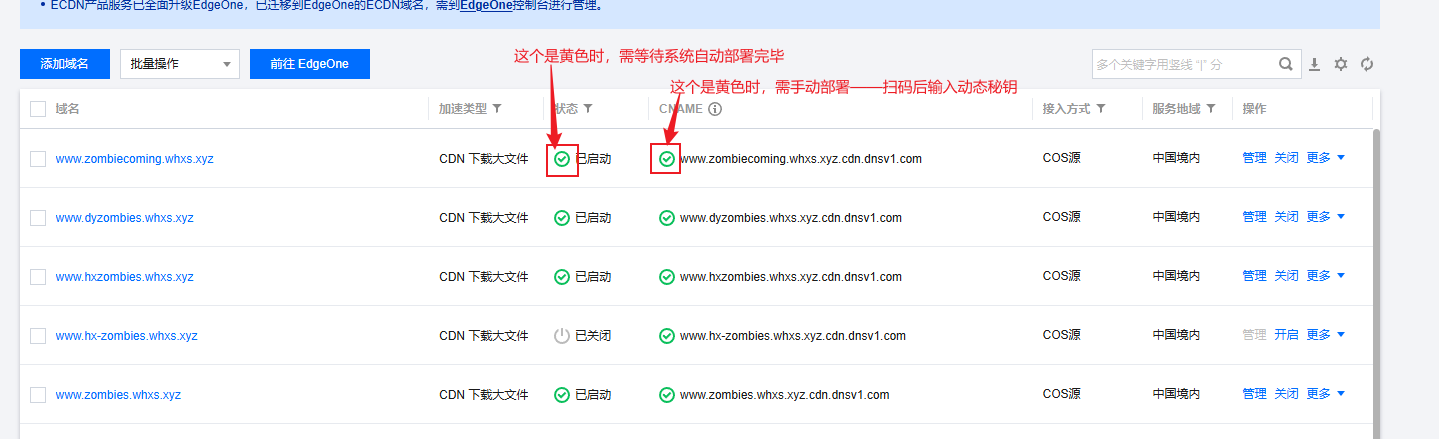

  2. 设置证书,未设置证书的无法通过https访问

    img img

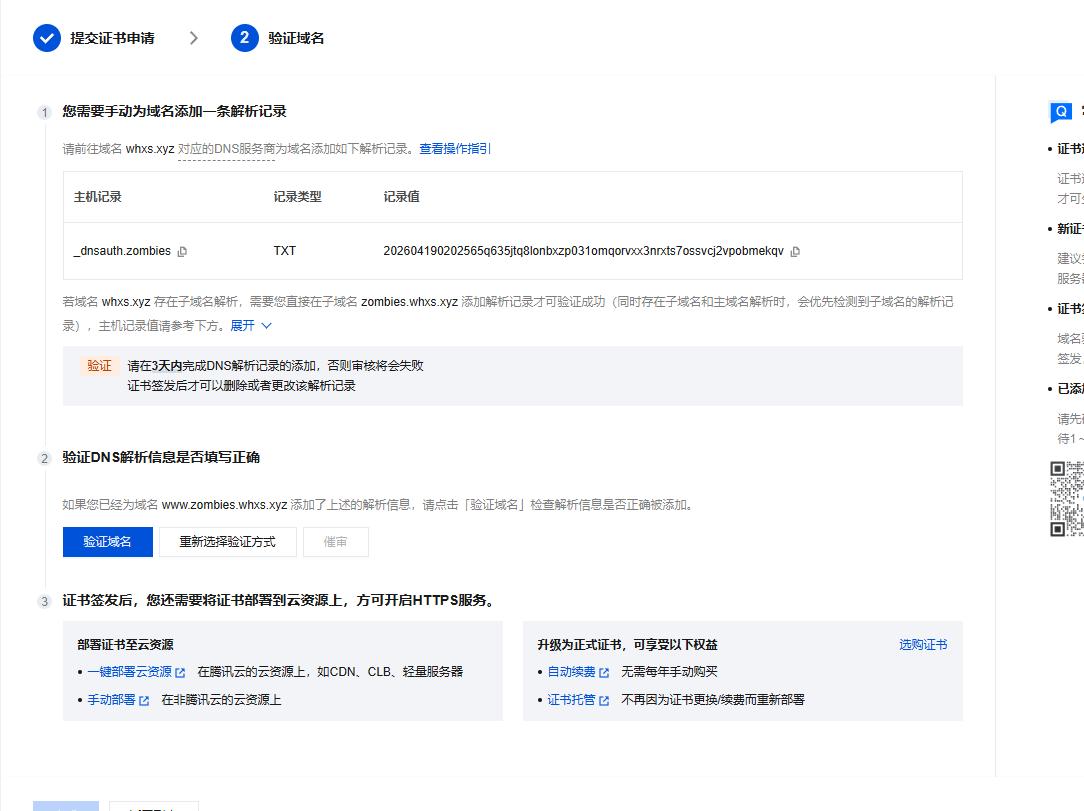

如上图所示,这一步骤如果没有购买腾讯的套餐可能需要手动验证域名

  1. 进入https://console.cloud.tencent.com/cns,并选择对应的解析域名,来到其记录管理界面。

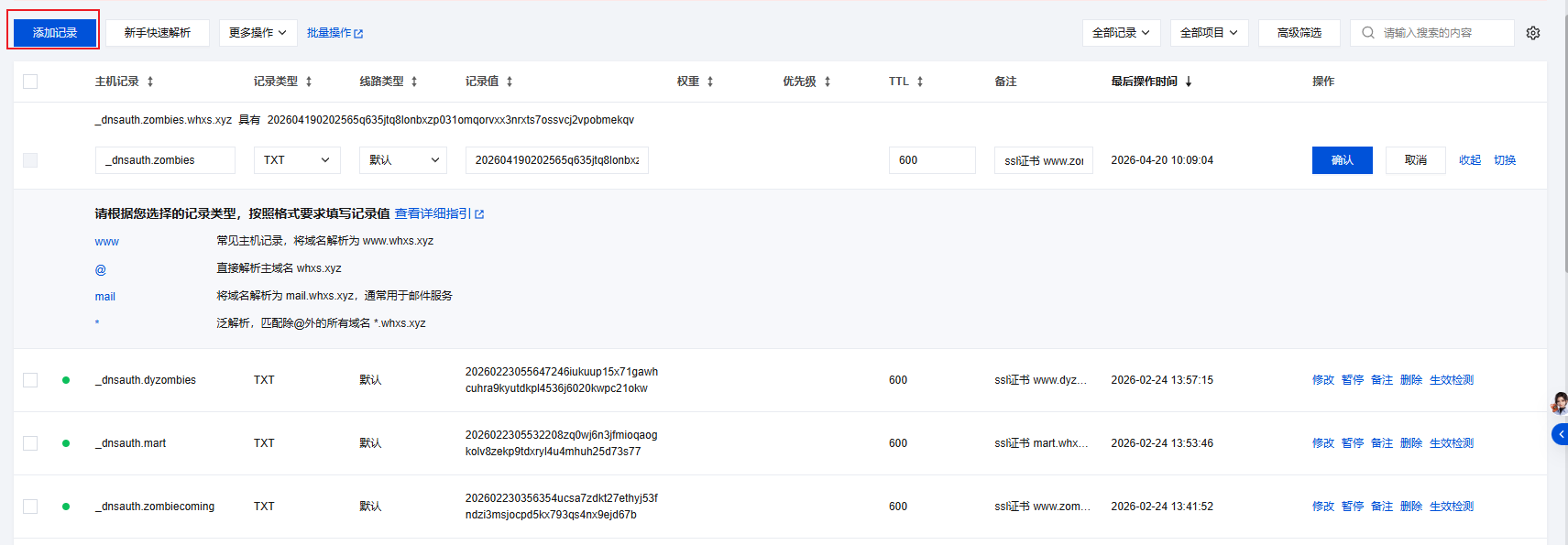

  2. 添加记录

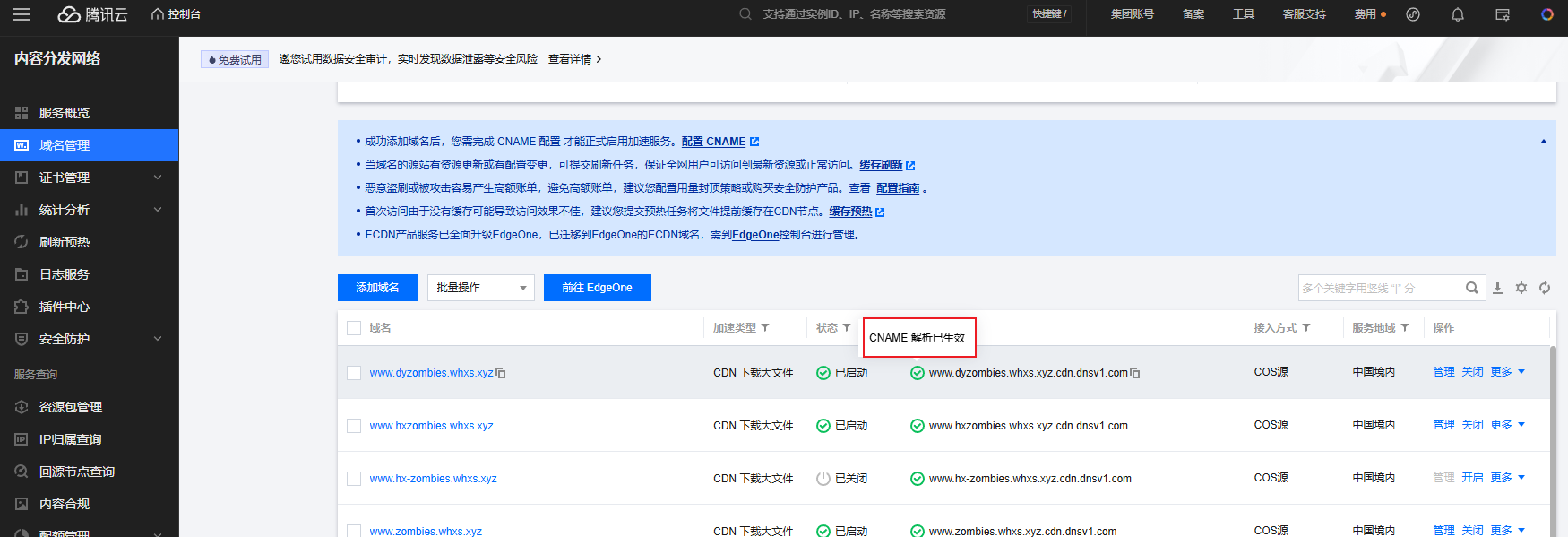

  1. 域名设置

    img img img

错误排查

按照以下流程一个一个排查

  1. 如果http无法访问,检查域名管理界面的解析是否正常

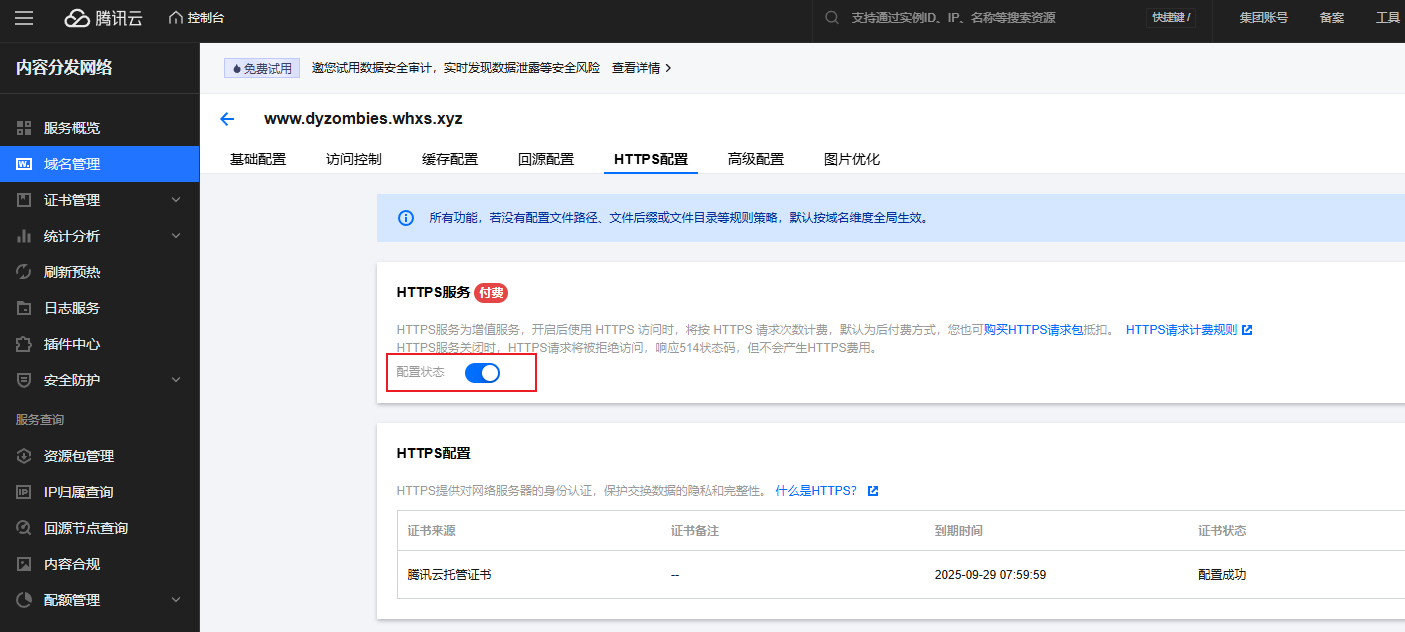

  2. 如果https无法访问,检查域名管理的https配置的https服务是否开启

1. 架构设计特点

单例模式与模块化设计

  • 采用单例模式确保全局唯一的对象池管理器
  • 模块化设计,职责分离明确:
    • GameObjectPool:主管理器
    • ConfigPool:配置组对象池
    • PooledObject:池化对象封装
    • PrefabRefInfo:预制体引用计数

配置驱动架构

1
2
[CreateAssetMenu(fileName = "PoolConfig", menuName = "GameplaySystem/PoolConfig", order = 10)]
public class PoolConfigScriptableObject : ScriptableObject
  • 使用ScriptableObject配置池参数
  • 支持可视化配置管理
  • 配置与代码分离,便于调整

2. 资源管理特点

双重资源加载策略

1
2
3
4
5
public interface IResourceLoader
{
GameObject LoadPrefab(string location);
UniTask<GameObject> LoadPrefabAsync(string location, CancellationToken cancellationToken = default);
}
  • 支持Unity Resources和TEngine两种资源加载方式
  • 接口抽象,易于扩展其他资源系统
  • 同步/异步加载双重支持

智能引用计数管理

1
2
3
4
5
6
7
8
9
10
public void AddRef()
{
RefCount++;
LastAccessTime = Time.time;
}

public void RemoveRef()
{
if (RefCount > 0) RefCount--;
}
  • 防止内存泄漏的引用计数机制
  • 时间戳记录,支持过期清理
  • 防重复减少引用计数的保护机制

3. 性能优化特点

对象重用策略

1
2
3
// 重用临时队列,避免重复创建
private static Queue<PooledObject> _tempQueue = new Queue<PooledObject>();
private static readonly List<PooledObject> _expiredObjects = new List<PooledObject>();
  • 静态临时容器重用,减少GC压力
  • 队列交换技术优化内存分配
  • 过期对象批量清理机制

异步加载优化

1
2
3
4
5
6
7
8
9
if (LoadingAssets.Contains(assetPath))
{
var completionSource = new UniTaskCompletionSource<GameObject>();
if (!PendingRequests.ContainsKey(assetPath))
{
PendingRequests[assetPath] = new List<UniTaskCompletionSource<GameObject>>();
}
PendingRequests[assetPath].Add(completionSource);
}
  • 避免重复加载同一资源
  • 挂起请求队列管理
  • UniTask异步框架支持取消操作

4. 内存管理特点

分层过期清理机制

1
2
3
4
5
public void CheckExpiredObjects()
{
// 清理过期对象
CheckExpiredPrefabs(); // 清理过期预制体
}
  • 对象级别过期清理
  • 预制体级别过期清理
  • 定时清理避免内存积累

智能池容量管理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
if (AllObjects.Count < Config.poolcnt)
{
// 创建新对象
}
else
{
// 复用最旧的非活跃对象
PooledObject oldestObj = null;
float oldestTime = float.MaxValue;
foreach (var obj in AllObjects)
{
if (!obj.isActive && obj.lastUsedTime < oldestTime)
{
oldestTime = obj.lastUsedTime;
oldestObj = obj;
}
}
}
  • LRU(最近最少使用)策略
  • 动态容量调整
  • 防止池无限增长

5. 监控与调试特点

完善的Editor扩展

1
2
[CustomEditor(typeof(GameObjectPool))]
public class GameObjectPoolEditor : UnityEditor.Editor
  • 实时监控池状态
  • 可视化进度条显示使用率
  • 详细的对象生命周期信息
  • 自动刷新机制

丰富的状态信息

1
2
3
4
5
6
public class PoolObjectInfo
{
public float remainingTime;
public float expireProgress;
public bool isActive;
}
  • 过期进度可视化
  • 剩余时间显示
  • 活跃状态监控

6. 错误处理特点

防御性编程

1
2
3
4
5
6
7
8
9
10
11
public void RemoveRef()
{
if (RefCount > 0)
{
RefCount--;
}
else
{
Log.Warning($"尝试减少已经为0的引用计数: {AssetPath}");
}
}
  • 引用计数边界检查
  • 空引用检查
  • 重复操作保护

异常恢复机制

1
2
3
4
5
6
7
8
9
while (AvailableObjects.Count > 0)
{
var obj = AvailableObjects.Dequeue();
if (obj.gameObject == null)
{
// 处理已销毁对象
continue;
}
}
  • 自动清理无效对象
  • 队列一致性维护
  • 异常状态恢复

7. 扩展性特点

接口设计

  • IResourceLoader接口支持多种资源系统
  • 配置驱动支持运行时调整
  • 事件回调机制支持自定义逻辑

生命周期管理

1
2
3
4
5
6
7
8
9
10
public class PoolObjectMonitor : MonoBehaviour
{
private void OnDestroy()
{
if (_pool != null && _pooledObject != null)
{
_pool.OnObjectDestroyed(_pooledObject);
}
}
}
  • 自动生命周期监控
  • 销毁事件处理
  • 状态同步机制

8. 使用便利性特点

简化的API设计

1
2
3
4
5
public static class GameObjectPoolHelper
{
public static GameObject LoadGameObject(string assetPath);
public static async UniTask<GameObject> LoadGameObjectAsync(string assetPath, CancellationToken cancellationToken = default);
}
  • 静态辅助类简化调用
  • 同步/异步双重接口
  • 取消令牌支持

总结

这个对象池系统展现了以下核心优势:

  1. 高性能:通过对象重用、静态容器复用、批量清理等手段最小化GC压力
  2. 高可靠性:完善的错误处理、防御性编程、状态一致性保证
  3. 高可维护性:模块化设计、配置驱动、丰富的调试信息
  4. 高扩展性:接口抽象、事件机制、生命周期管理
  5. 易用性:简化的API、详细的文档、可视化配置

整体而言,这是一个企业级的对象池实现,适用于对性能和稳定性要求较高的游戏项目。
